Deep inside your tank water heater, a single metal rod is quietly sacrificing itself to keep the steel tank from rusting through. That rod — the anode rod — is the only thing standing between Diamond Bar's mineral-rich water and the inside of your tank. Through a process called galvanic corrosion, the rod corrodes in place of the tank lining, dissolving slowly over three to five years until there is nothing left to protect the steel. When that happens, corrosion turns on the tank itself, and the first sign is often a slow weep at a seam or a puddle spreading across the garage floor. Anode rod replacement is the simplest, most cost-effective way to reset that corrosion clock and add years of life to a tank water heater. Our team performs anode rod replacement across Diamond Bar, CA 91765 on gas and electric models of every major brand, and every visit includes a full leak inspection of fittings, valves, and connections. If your heater is between three and five years old and has never had its rod serviced, now is the time. Call (833) 713-2101 to schedule your anode rod replacement today.
How the Anode Rod Shields Your Tank From Corrosion
Every conventional tank water heater sold in America has a steel tank, and steel has one relentless enemy: water. To fight it, manufacturers coat the inside of the tank with a glass lining, but that lining is never perfect. Microscopic cracks, pinholes, and thin spots are inevitable from the manufacturing process and from years of thermal expansion and contraction, and wherever bare steel meets water, rust begins. The anode rod exists to lose that battle on purpose. Made from magnesium, aluminum, or a zinc alloy — metals far more electrochemically active than steel — the rod draws corrosive activity to itself through a process called galvanic corrosion. Instead of the tank walls pitting and thinning, the rod pits and thins, dissolving a little more each day while the steel around it stays intact.
The water serving Diamond Bar carries a meaningful load of dissolved minerals, and mineral-rich water is harder on anode rods than soft, pure water would be. Conductivity is the issue: the more dissolved solids in the water, the more aggressively the galvanic reaction proceeds, and the faster the rod sacrifices itself. Homes in Diamond Bar with water softeners face an even sharper version of this problem, because softened water attacks sacrificial anode metal faster than unsoftened water does. That is why a rod rated for five years in a mild-water region can be down to a bare wire core in three years in a home with aggressive water chemistry. Local conditions genuinely change the maintenance math, which is why a Diamond Bar replacement schedule should be built around Diamond Bar water, not a national average printed in an owner's manual.
Once the rod is consumed down to its steel core wire, the protection stops and corrosion turns its full attention to the tank. It rarely announces itself dramatically. More often, rust blooms quietly at a weld or a fitting for months before the first pinhole opens, and by the time a homeowner notices a damp spot under the heater, the tank wall is already compromised. That slow arc — from spent rod to seep to steady leak — is behind a large share of the tank water heater leak repair calls we answer across Diamond Bar. Replacing the rod on schedule interrupts that arc at its cheapest point: a single service visit instead of a flooded garage and a full water heater replacement.
Warning Signs Your Anode Rod Is Spent
A spent anode rod gives off clues long before the tank itself starts leaking, and knowing them can save you from a surprise flood. The most famous is the rotten-egg smell in hot water only — cold water smells fine, hot water smells sulfurous. That odor comes from naturally occurring sulfate-reducing bacteria reacting with a magnesium rod, and while it does not mean the rod is fully consumed, it does mean the chemistry inside your tank has shifted. Another classic sign is rusty or discolored hot water while the cold runs clear. That discoloration often means the rod is depleted enough that the tank walls have started contributing iron to the water, which is a late-stage warning worth acting on quickly.
Warning signs worth a service call
- Sulfur or rotten-egg odor in hot water only
- Rusty, brown, or metallic-tasting hot water with clear cold water
- Water heater is three to five years old with no maintenance history
- Popping, rumbling, or crackling sounds from sediment and scale buildup
- Visible rust or corrosion around the hex head on top of the tank
- Small recurring seeps at fittings that keep coming back
Age alone is a legitimate reason to check. If your heater is past its third birthday and nobody has ever looked at the rod, odds are strong it is significantly depleted — most are. The popping and rumbling sounds deserve attention too, because heavy sediment insulates the bottom of the tank, creates hot spots, and accelerates the corrosion the rod is supposed to be absorbing. When we arrive for water heater leak detection or maintenance in Diamond Bar, the anode rod is one of the first things we assess, because its condition tells us so much about what is happening inside a tank we cannot see into. Catching a depleted rod early is a small fix; catching it after the tank wall has thinned is a replacement.
Our Anode Rod Replacement Process in Diamond Bar
Our anode rod replacement service follows a careful sequence designed to protect your tank, your home, and your hot water supply. We start by shutting off the energy source — the gas control to pilot or off for gas heaters, the breaker for electric models — and closing the cold-water inlet valve. Then we relieve pressure through a hot tap and drain the tank just far enough to drop the water level below the rod port at the top. There is no need to empty the whole tank, which keeps the job quick and avoids stirring up sediment unnecessarily. With the water level down, we break loose the hex head on top of the tank. This is the step where experience matters most: after years of heat cycling, that fitting is often seized, and the wrong technique can twist the tank fitting or crack the lining. We use controlled leverage and, when needed, an impact driver to free it without stressing the tank.

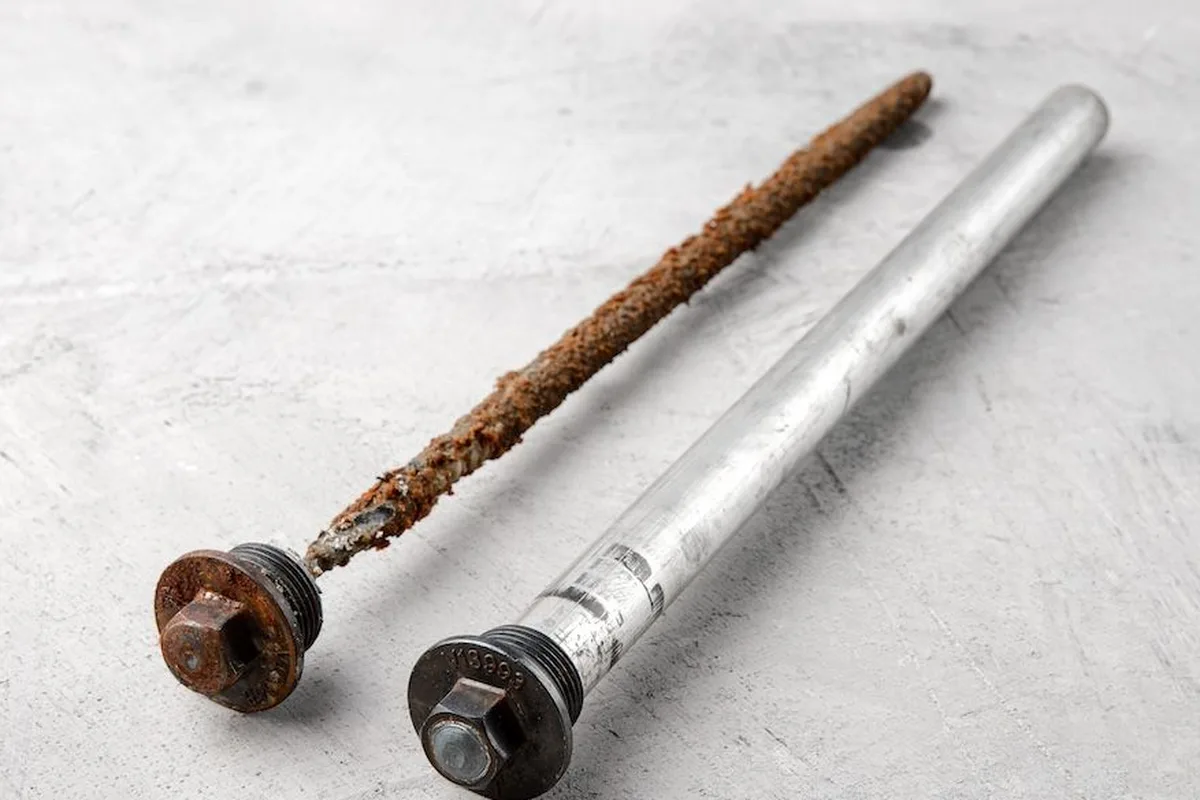

Once the old rod slides out, we inspect it with you so you can see exactly what years of service look like — heavily pitted rods, rods eaten down to the core wire, and rods coated in calcium tell different stories about your water. Then we select the replacement: a standard rigid rod where clearance allows, or a flexible segmented rod that articulates through the port for heaters tucked into closets with low ceilings. The new rod goes in with proper thread sealant, torqued to spec so it seals without over-stressing the fitting. We refill the tank completely, purge air from the lines through the hot taps, restore gas or power, and verify the burner or elements fire correctly. Before we leave, the entire heater gets a full leak inspection — TPR valve, drain valve, inlet and outlet connections, and the tank base — so you know the whole unit is sound, not just the part we touched.
We also record the rod type and installation date for your records, so the next inspection interval is based on facts rather than guesswork. In Diamond Bar water, we typically recommend rechecking the rod in three years — sooner if your home uses a water softener, which accelerates depletion. That scheduled follow-up is what turns a one-time repair into a real maintenance program, and it is how our customers' tanks routinely outlast the neighborhood average by years.
Magnesium, Aluminum, or Zinc: Choosing the Right Rod
Not all anode rods are the same metal, and the choice affects both protection level and water quality. Magnesium rods offer the most aggressive protection — magnesium is the most electrochemically active of the common rod metals, so it sacrifices itself fastest and shields the tank most vigorously. For most Diamond Bar homes with standard water chemistry, magnesium is our default recommendation. The tradeoff is that magnesium reacts with sulfate-reducing bacteria to produce hydrogen sulfide, the rotten-egg odor some homeowners notice. If your household already deals with that smell, installing another magnesium rod will likely keep the problem going, which is where the alternatives earn their place.
Aluminum rods are the budget option: cheaper and longer-lasting than magnesium, but they protect less aggressively, so the tank shoulders more of the corrosive load over time. They make sense mainly as an economy choice for heaters already near the end of their expected life. The zinc-aluminum alloy rod is the problem-solver — typically around ninety percent aluminum with zinc added specifically to suppress the bacterial reaction that causes sulfur odor. For Diamond Bar homes fighting smelly hot water, the zinc alloy rod plus a thorough tank flush resolves the odor in most cases without giving up meaningful protection. Powered anode rods, which use a small electrical current instead of sacrificial metal, also exist and never deplete, though they cost more upfront. During your service visit we will look at your water conditions, your odor history, and your heater's age, then recommend the rod metal that gives your specific tank the longest, cleanest remaining life. Ask us about powered anode rods as well — they use a small electrical current instead of sacrificial metal and never need replacement, making them a fit-and-forget option for homeowners who want maximum protection with zero maintenance for years to come.
