Every tank water heater has a small spigot near the bottom, and it causes a surprising share of service calls. That is the drain valve, the fitting you use to flush sediment and drain the tank. Most heaters ship with a cheap plastic valve that hardens, cracks, and seizes after years of heat cycling. In Chino Hills, where hard water leaves mineral crust on everything it touches, those plastic valves fail even faster. A dripping drain valve gets mistaken for a tank leak, and a seized one makes flushing impossible, which lets sediment cook the tank from below. Drain valve replacement solves both problems in one visit: we remove the failed plastic valve and install a full-port brass ball valve that opens wide, seals tight, and stands up to years of use. For Chino Hills homeowners with an aging heater, it is one of the highest-value small repairs available. Call (833) 713-2101 for drain valve replacement in Chino Hills, CA 91709.
Why This Matters in Chino Hills
Chino Hills is a master-planned community where most homes were built from the 1980s through the early 2000s, so the housing stock looks newer than its neighbors. But those first-generation tract water heaters are now 20 to 40 years old, and many homes are on their second tank already. The city water supply runs hard, and the larger two-story homes put heaters in three-car garages where leaks can spread across a wide concrete slab before reaching a drain. With long plumbing runs in bigger floor plans, the heaters here work harder and cycle more than in smaller homes. Because most homes were built from the 1980s through the early 2000s as master-planned tracts, many Chino Hills heaters still carry the cheap plastic drain valve they shipped with. Those valves crack from heat cycling, drip steadily onto the slab, and get mistaken for tank leaks that would require full replacement. A brass replacement ends the drip, holds up to repeated flushing, and costs a fraction of a new heater. For Chino Hills homes trying to stretch an aging tank a few more years, it is one of the highest-value repairs available. We see this pattern constantly in Chino Hills, where most homes were built from the 1980s to the early 2000s, and the brass upgrade resolves it in a single visit. It is the rare repair that both stops a leak and unlocks years of proper maintenance.
Why Factory Drain Valves Fail
The drain valve on a new water heater looks sturdy enough, but it is built to a price. Nearly every residential tank ships with a plastic drain valve: a nylon or polymer body with a small, restrictive flow path and a handle that turns a tapered plug. The problem is what the next ten years do to plastic that sits inches from a burner or lower heating element. Heat cycling slowly hardens and embrittles the polymer, and in Chino Hills the the local supply, which runs hard adds a second attack, crusting the seals and threads with mineral scale. The result is a valve that either will not turn, will not seal, or both.
The seal inside the plastic body degrades, and water starts dripping from the spout or seeping around the threads. Homeowners in Chino Hills often discover it as a damp spot on the garage slab or a white mineral trail running down from the valve. Because the drip is small, it gets ignored, and because it gets ignored, the mineral crust builds until the valve cannot be closed fully at all.
The second failure mode is the seized valve. A plastic drain valve that has sat untouched for a decade effectively welds itself shut with scale. When someone finally tries to flush years of sediment, the handle snaps off or the stem shears, sometimes leaving the valve stuck open and the tank draining onto the floor.
The third failure is cracking. Embrittled plastic plus overtightening, or a bump from a stored item in a crowded Chino Hills garage, can crack the valve body outright. All three failures share the same root cause: the factory chose plastic to save money, and plastic was never going to survive a decade of heat and hard water.
Brass Ball Valve Upgrade: What Changes

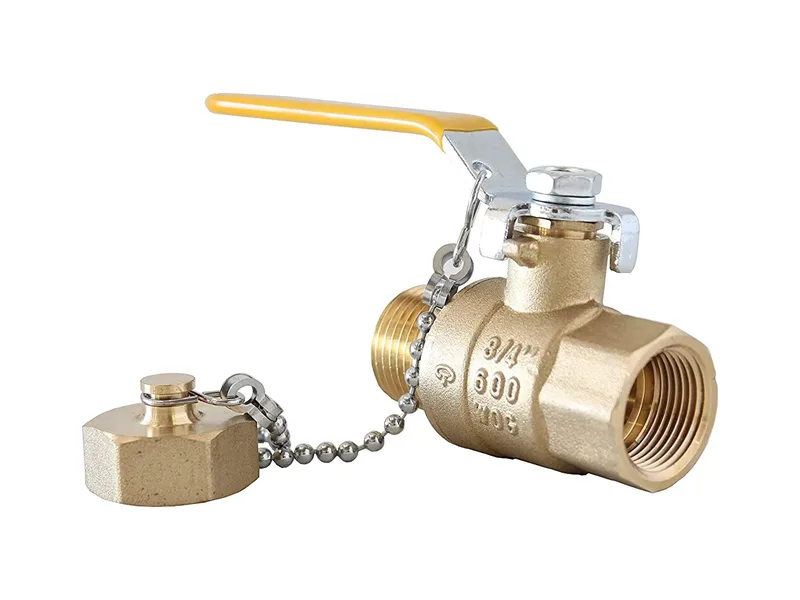

When we replace a drain valve in Chino Hills, we do not install another plastic valve. The upgrade is a full-port brass ball valve, and the difference is not subtle. A ball valve uses a polished brass sphere with a hole through it: a quarter-turn of the handle rotates the ball from fully closed to fully open. There is no tapered plug to seize, no plastic body to embrittle, and the flow path is the full diameter of the fitting. Sediment and scale that would clog a plastic valve pass straight through a full-port brass valve.
The practical change homeowners notice first is flushing speed. A plastic factory valve drains a 50-gallon tank in a slow, reluctant trickle, and the narrow opening clogs on the first chunk of sediment. A full-port brass valve drains the same tank dramatically faster, which matters because a flush only works if the water moves fast enough to carry sediment with it. In Chino Hills, where hard water builds heavy sediment beds, that flow difference is the difference between a flush that works and one that just stirs the mud.
The second change is reliability. Brass does not harden with heat cycling the way plastic does, and the ball-and-seat design seals with a wipe-clean action every time the handle turns. For Chino Hills homeowners, that reliability compounds: a valve that works gets used, and a tank that gets flushed lasts longer.
The third change is repairability. If a brass ball valve ever does develop a drip at the packing nut, it tightens with a wrench in seconds. The brass upgrade costs more than a plastic swap, but it is still a small fraction of a heater replacement, and it converts the drain valve from a disposable weak point into a permanent part of the system.
What Happens During Drain Valve Replacement
Drain valve replacement is a contained, predictable job, and most Chino Hills appointments run about an hour. We turn the gas control to pilot or off, or switch off the breaker for electric units, then close the cold water supply to the heater. Before touching the valve, we check the tank itself: a valve replacement makes sense on a sound tank, but if the tank is rusting through or leaking from the shell, we will tell you straight that a new heater is the honest recommendation.
With the old valve still in place, we attach a hose and open it, or if the old valve is completely seized, we drain through the temperature and pressure relief valve opening. The tank does not need to empty fully for a valve swap, but it needs to drop below the valve level so the changeover stays dry. While it drains, we prepare the brass ball valve with thread sealant rated for hot water service.
The swap itself is straightforward but demands care. The old plastic valve unthreads from the tank spud, and we inspect those threads closely: years of scale can damage them, and damaged threads get cleaned and evaluated before the new valve goes in. The brass valve threads in by hand first to avoid cross-threading, then gets tightened to spec with a wrench. Overtightening cracks tank fittings, so this is a feel step that rewards experience.
With the new valve in, we refill the tank, bleed air from the hot-water taps, and relight or re-energize the unit. Then comes the bonus: with a full-port brass valve installed, we flush the sediment bed properly, something the old valve could never do. We finish by checking the new valve for drips under pressure, confirming the burner or elements cycle normally, and walking you through the new quarter-turn handle.
