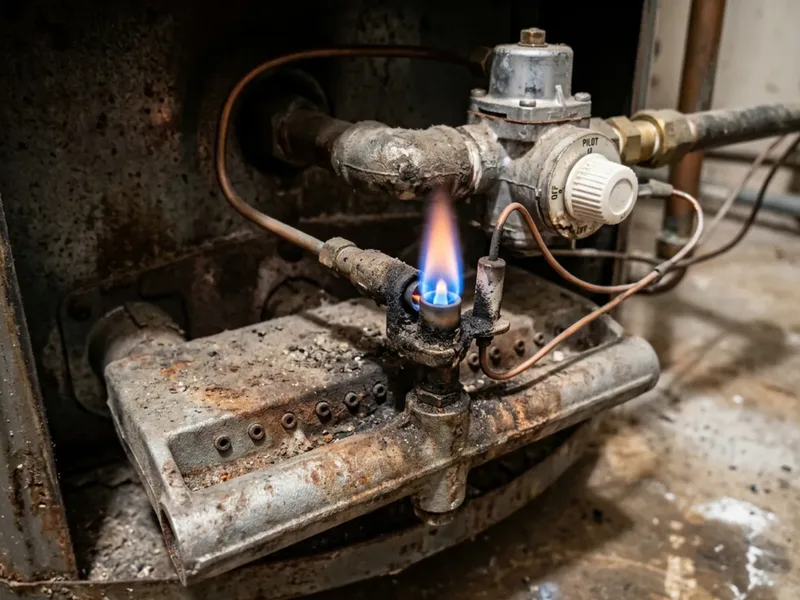

When the pilot on your gas water heater will not stay lit, or the burner never fires no matter where you set the dial, the gas control valve is the part to suspect. It is the single component that meters gas to the burner, holds the pilot safety circuit, and shuts everything down if the flame goes out — and when it wears out, the symptoms range from cold showers to water hot enough to scald. Water Heater Leak Repair Masters replaces failed gas control valves in Chino Hills, CA 91709 homes every week, and most jobs finish in a single visit with hot water back the same day. This guide explains how valve failure shows up locally, what a proper replacement involves, and when the honest answer is a new heater instead. In Chino Hills, most valve failures we diagnose happen in heaters between eight and twelve years old, when internal seals and thermostats reach the end of their design life. Call (833) 713-2101 for same-day service.
Why This Matters in Chino Hills
Big master-planned homes mean big hot-water demand on 50-gallon tanks, hillside pressure zones stress fittings, and hard water works constantly on tank bottoms — Chino Hills heaters run long, hot cycles.
Chino Hills is almost entirely master-planned 1980s-2000s construction — large two-stories on winding hillside streets with very few pre-1980 homes. Slab-on-grade almost universally; stepped foundations on the steepest hillside lots.
Copper supply throughout the 1980s-90s builds; 2000s homes mix copper trunks with PEX branches.
Gas valves rarely die quietly in Chino Hills — the local housing stock gives them plenty of reasons to quit. The 1980s-2000s builds run copper throughout, but hillside pressure zones stress every fitting. The gas connector and water fittings at the heater are often the oldest, most corroded in the house, and disturbing them during a valve swap demands care, backup wrenches, and the right materials. Elevation tempers the heat slightly, but Santa Ana winds rake the ridgelines and summers still bake garages. Add summer garage heat that pushes installations past 120 degrees, and the valve's internal seals and thermostat age faster than the calendar suggests. When we replace a valve here, we also check the vent connector, the seismic strapping California requires, and the shutoff valve feeding the unit — because a new valve on a compromised setup is a callback waiting to happen.
That full-installation check is standard on our Chino Hills valve calls, because the conditions that killed the old valve will wear on the new one too.
Big master-planned homes mean big hot-water demand on 50-gallon tanks, hillside pressure zones stress fittings, and hard water works constantly on tank bottoms — Chino Hills heaters run long, hot cycles.
Chino Hills is almost entirely master-planned 1980s-2000s construction — large two-stories on winding hillside streets with very few pre-1980 homes. Slab-on-grade almost universally; stepped foundations on the steepest hillside lots.
Copper supply throughout the 1980s-90s builds; 2000s homes mix copper trunks with PEX branches. Hot summers tempered slightly by elevation, Santa Ana winds across the ridgelines, and hard municipal water.
What wears out first in Chino Hills is rarely mysterious: thermal cycling works every threaded joint a fraction looser each season, moisture films corrode the gas fittings at the valve, and sediment-baked tank bottoms overheat the thermostat section. A valve that might last 12 years in gentle conditions gives up at 8 or 9 here. The 1980s-2000s builds run copper throughout, but hillside pressure zones stress every fitting. When we replace a valve in Chino Hills, we know exactly which companion issues to check — the shutoff valve's condition, the vent connector's integrity, the seismic strapping, and whether the thermocouple was the real culprit all along. That thoroughness is the whole job: the valve is the part, but the installation is the system, and both have to be right.
Gas valve longevity in Chino Hills comes down to heat management: yearly sediment flushing keeps the tank from overheating the valve's thermostat section, and keeping the area clear ensures clean combustion air.
Chino Hills' hard water makes annual flushing non-negotiable for valve life — scale insulates the tank bottom, the burner overworks, and the thermostat section absorbs the punishment.
Homeowners describe valve trouble in plain terms. Here is what those complaints point to:
- “The pilot keeps going out.” Weak thermocouple signal, a failing pilot safety magnet inside the valve, or downdrafts snuffing the flame through an aging flue.
- “We have hot water, then it is cold.” The valve's thermostat is cutting out early or the burner is short-cycling.
- “The water is scalding.” Thermostat stuck open — turn the dial down immediately and call promptly, because water over 140 degrees scalds in seconds.
- “There is a blinking light on the valve.” Count the blinks in the repeating sequence: the pattern maps to a fault code, from weak pilot signal to a tripped high-temperature limit.
- “It smells faintly of gas near the heater.” Stop, do not light anything, ventilate if safe, and call — a valve body or fitting leak needs immediate professional attention.
- The burner lights, then drops out. The valve opens the gas path but cannot hold it — a failing regulator section or a safety circuit cutting out mid-cycle.
- Hot water runs out faster than it used to. A thermostat cutting out early shortens every burner cycle, most noticeable in larger households.
Diagnosis is what separates a valve job from a thermocouple job. We relight and observe, pull the error code from the status light, test the thermocouple's output, and check inlet gas pressure before any part comes off. In Chino Hills we regularly find the valve itself is fine and the real culprit is a corroded gas connector, a failed thermocouple, or a vent problem — every one of them a cheaper fix than a valve.
Wondering what actually happens when the technician arrives? Here is the honest version, start to finish:
First comes the part most shops skip: real diagnosis. We relight and observe, pull the error code from the status light, test the thermocouple's millivolt output, and check gas pressure. About a third of the suspected valve failures we see in Chino Hills turn out to be a thermocouple, a gas connector, or a venting issue — we would rather hand you the smaller bill. If the valve has genuinely failed, we shut the gas and water, drain the tank down, and pull the burner assembly. The old valve unthreads from the tank; the new one goes in with gas-rated sealant, a new thermocouple, and careful manifold alignment. Then every gas connection gets leak-checked, the pilot is lit, and we watch a full burner cycle while verifying the flue drafts properly.
Before we leave, the thermostat is set to a safe 120 degrees, we confirm the seismic strapping is intact, and we show you what the status light's normal blink looks like so you know what healthy means. Then we talk longevity: flush sediment yearly, because scale buildup makes the tank run hot and cooks the thermostat section; keep the area clear for combustion air; and glance at the status light monthly so an error code catches your eye early. As for valve versus new heater — if the tank shows rust at the base or the unit is past 12 years with no maintenance history, we will say so plainly rather than sell you a valve.
