Most homeowners discover their water heater has no drain pan the same way they discover the tank is leaking: standing in water. In Walnut's 1970s–1990s master-planned hillside tracts, pan-less installs are the norm rather than the exception — builders met the letter of older codes, remodels tucked heaters into closets the code writers never pictured, and nobody thought about the pan again until it mattered.

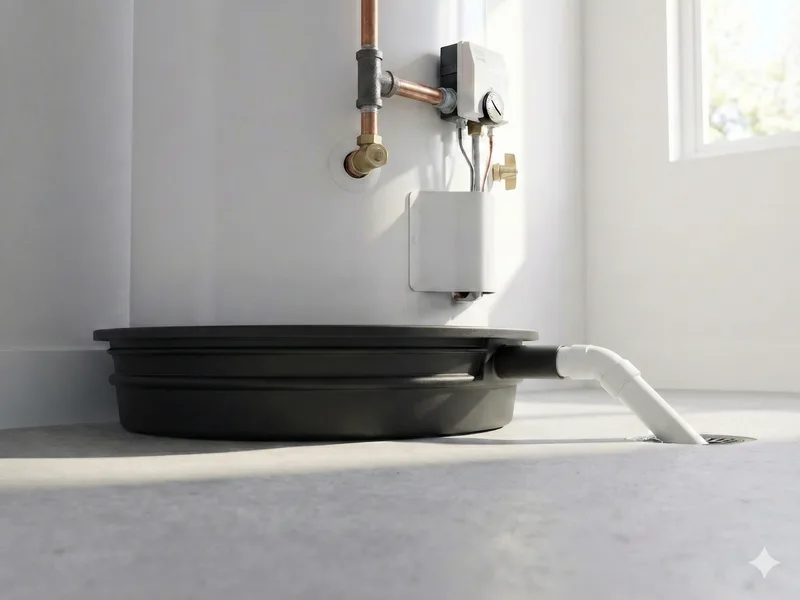

Walnut's repeated two-story plans put the heater closet above a bedroom or bath in hundreds of identical homes — a whole neighborhood of the same risk. The pan-and-drain retrofit is the same job done right hundreds of times: pan under the tank, 3/4-inch drain to the exterior, alarm on the floor. Retrofitting a pan under an existing tank is straightforward work that pays for itself the first time the tank weeps. We lift the tank onto a new corrosion-resistant pan, reconnect with fresh supply lines as needed, and run the 3/4-inch drain to an approved exterior termination. The tank stays; the protection gets added around it.
Pair the pan with a five-minute addition — a water alarm on the pan or floor — and a future leak announces itself with a shriek instead of a stain. Pan installation from Water Heater Leak Repair Masters in Walnut 91789 includes the alarm recommendation, the drain routing plan, and an honest assessment of whether your tank itself is due for replacement at the same time.
Why Walnut Homes Need Drain Pans
California Plumbing Code section 508.4 requires a watertight, corrosion-resistant pan beneath a water heater installed in an attic, over a ceiling assembly, or anywhere a leak would cause damage — minimum 1-1/2 inches deep, drained by a line no smaller than 3/4 inch to an approved location. The code exists because the failure mode is so predictable: tanks don't leak a little, they let go, and gravity does the rest.
Walnut's repeated two-story plans put the heater closet above a bedroom or bath in hundreds of identical homes — a whole neighborhood of the same risk. The pan-and-drain retrofit is the same job done right hundreds of times: pan under the tank, 3/4-inch drain to the exterior, alarm on the floor.
One more reason the pan matters in Walnut: Walnut Valley Water District (portions) delivers imported Metropolitan Water District supply, and mineral-heavy water shortens tank life. The harder the water, the sooner the tank fails — and the sooner a drained pan earns its keep.
Beyond code, there's simple economics. A pan and drain installation costs a small fraction of a single ceiling repair, let alone the mold remediation that follows a leak discovered weeks late. Insurance may cover the damage from a sudden failure, but it won't cover the weeks of slow seepage that a pan would have made visible on day one — and adjusters know the difference.
Anatomy of a Code-Compliant Pan Install
A proper pan installation has four parts, and skipping any one of them is how ‘protected’ heaters still cause damage. First, the pan itself: corrosion-resistant, full-footprint, 1-1/2-inch minimum depth. Second, the drain: 3/4-inch minimum, continuous fall, approved materials. Third, the termination: visible, so discharge announces the failure. Fourth, the fit: level, stable, and sealed where the tank meets the pan.
In Walnut's garages and second-story closets, the fourth part takes real care. Tight closets need low-profile pans that still meet the depth requirement; attic platforms need pans secured against shifting; garage installs need the pan protected from being kicked and cracked by stored items. Walnut's repeated two-story plans put the heater closet above a bedroom or bath in hundreds of identical homes — a whole neighborhood of the same risk. The pan-and-drain retrofit is the same job done right hundreds of times: pan under the tank, 3/4-inch drain to the exterior, alarm on the floor.
We finish every installation with a water test — a bucket poured into the pan, watched all the way to the termination — and we show you where the drain exits so you know what to look for. A pan you can't monitor is only half an installation.
Signs You Need a Pan Installed
Start with location. If your heater sits in an attic, in a second-story closet, above a finished ceiling, or anywhere that a leak would fall onto finished space, code requires a pan — and if yours lacks one, the installation was never compliant. Check today: look under the tank for a shallow metal or plastic tray with a drain line leaving it. No tray, no drain, no protection.
- Heater in an attic or above a ceiling assembly — pan required by code
- Heater in a closet over finished rooms, even on the ground floor
- Heater in a garage sharing a finished wall with living space
- Any install where the current ‘pan’ is rusted through, cracked, or undrained
- Rental properties, where a tenant may not notice a leak for weeks
- Homes near Mt. SAC with finished basements or lower levels below the heater
Even where code doesn't strictly require it, a pan is inexpensive protection for any install near finished space. The question isn't whether your tank will eventually leak — every tank does, given enough years — it's whether you'll find out from a drip at the drain termination or from a collapsed ceiling.
Our Pan Installation Process in 91789
- Inspection first. We check the tank's age and base condition, because a pan under a failing tank is the wrong order of operations — if replacement is due, we quote both together.
- Pan selection. Corrosion-resistant, full-footprint, 1-1/2-inch minimum depth, chosen for the realities of your garages and second-story closets — tight closets get low-profile designs that still meet code.
- Drain design. The 3/4-inch minimum drain route is mapped with continuous fall to a visible exterior termination; on Walnut's rolling hills, this step gets the most planning time.
- Installation. Tank lifted onto the pan, drain run and supported, connections remade with fresh supply lines where the old ones show age.
- Water test. We pour water into the pan and watch it travel the full drain path to the termination — no test, no sign-off.
- Alarm recommendation. We suggest placement for a water alarm that turns a future leak into an audible alert instead of a hidden one.
You'll know where every part of the system is and what it does before we leave. A pan installation should leave you more informed, not just better protected.
Beyond the Pan: Early Warning in Walnut
A pan handles the water; an alarm handles the awareness. A ten-dollar water alarm on the pan or the floor beside the tank turns a silent 2 a.m. failure into a wake-up call, and for Walnut homes near Mt. SAC where the heater sits out of sight, that audible alert is worth more than the pan itself. We recommend placement on every install and can supply the alarm.
For the next level, an automatic shutoff valve closes the cold-water supply when its sensor gets wet — stopping the leak at the source instead of merely containing it. On attic and second-story installs, where even a contained leak means water sitting in a ceiling, the shutoff earns its keep. It's a modest add-on during a pan install and a much bigger job as a standalone visit.
The full stack — sound tank, code-compliant pan with a tested drain, alarm, and ideally an auto-shutoff — means the next failure is an appointment, not an emergency. Pair it with the maintenance that delays that failure: annual flushing against our mineral-heavy water and periodic anode checks. Call (833) 713-2101 and we'll build the right stack for your Walnut 91789 home.
