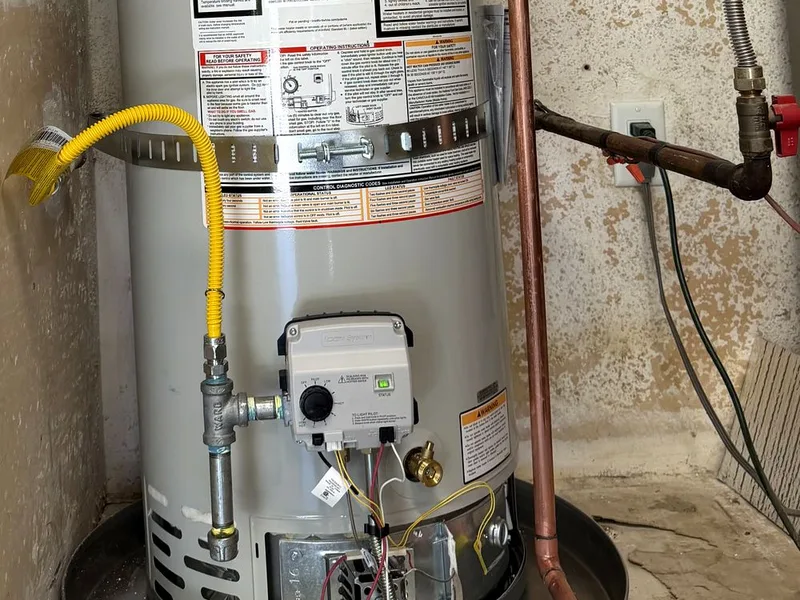

Water Heater Pan Installation in Whittier, CA 90603

Professional Service

IN SHORT: A drain pan won't stop a water heater from leaking, but it decides where 40 to 50 gallons of water goes when it does. Our pan installation service in Whittier, CA 90603 fits a corrosion-resistant pan beneath your tank and runs its drain to daylight, so a failure becomes a visible drip outside instead of a ruined ceiling. Call (833) 713-2101 for an estimate.

Picture 50 gallons of hot water with nowhere to go. That's what a failed tank delivers, all at once, usually at 2 a.m. — and in Whittier, where heaters live in small utility closets, ‘nowhere to go’ too often means through a ceiling, across finished flooring, or into wall cavities that won't dry on their own. A drain pan doesn't prevent the failure; it converts a catastrophe into a maintenance call.

Whittier's tiny closets were built before pans were common, and shoehorning one in takes a low-profile pan and a creative drain route. We specialize in exactly this retrofit: the pan fits, the 3/4-inch drain finds daylight, and the closet door still closes. The code requirements are specific for good reason. The pan must be watertight and corrosion-resistant — a rusted-through pan protects nothing — at least 1-1/2 inches deep to contain a meaningful volume, and drained by a minimum 3/4-inch line to an approved location. We terminate drains where discharge is visible from outside the home, because early visibility is the entire point.

If your Whittier home near Uptown Whittier and Whittier College has a heater with no pan beneath it, call (833) 713-2101. We'll assess the installation, confirm what code requires for your layout, and quote a retrofit pan with proper drainage — usually completed in a single visit, without replacing a tank that still has years left.

Where Code Requires a Pan in Whittier

California Plumbing Code section 508.4 requires a watertight, corrosion-resistant pan beneath a water heater installed in an attic, over a ceiling assembly, or anywhere a leak would cause damage — minimum 1-1/2 inches deep, drained by a line no smaller than 3/4 inch to an approved location. The code exists because the failure mode is so predictable: tanks don't leak a little, they let go, and gravity does the rest.

Whittier's tiny closets were built before pans were common, and shoehorning one in takes a low-profile pan and a creative drain route. We specialize in exactly this retrofit: the pan fits, the 3/4-inch drain finds daylight, and the closet door still closes.

Beyond code, there's simple economics. A pan and drain installation costs a small fraction of a single ceiling repair, let alone the mold remediation that follows a leak discovered weeks late. Insurance may cover the damage from a sudden failure, but it won't cover the weeks of slow seepage that a pan would have made visible on day one — and adjusters know the difference.

What a Proper Pan Installation Includes

A proper pan installation has four parts, and skipping any one of them is how ‘protected’ heaters still cause damage. First, the pan itself: corrosion-resistant, full-footprint, 1-1/2-inch minimum depth. Second, the drain: 3/4-inch minimum, continuous fall, approved materials. Third, the termination: visible, so discharge announces the failure. Fourth, the fit: level, stable, and sealed where the tank meets the pan.

In Whittier's small utility closets, the fourth part takes real care. Tight closets need low-profile pans that still meet the depth requirement; attic platforms need pans secured against shifting; garage installs need the pan protected from being kicked and cracked by stored items. Whittier's tiny closets were built before pans were common, and shoehorning one in takes a low-profile pan and a creative drain route. We specialize in exactly this retrofit: the pan fits, the 3/4-inch drain finds daylight, and the closet door still closes.

We finish every installation with a water test — a bucket poured into the pan, watched all the way to the termination — and we show you where the drain exits so you know what to look for. A pan you can't monitor is only half an installation.

Which Heaters Need Pans Most

Start with location. If your heater sits in an attic, in a second-story closet, above a finished ceiling, or anywhere that a leak would fall onto finished space, code requires a pan — and if yours lacks one, the installation was never compliant. Check today: look under the tank for a shallow metal or plastic tray with a drain line leaving it. No tray, no drain, no protection.

  • Heater in an attic or above a ceiling assembly — pan required by code
  • Heater in a closet over finished rooms, even on the ground floor
  • Heater in a garage sharing a finished wall with living space
  • Any install where the current ‘pan’ is rusted through, cracked, or undrained
  • Rental properties, where a tenant may not notice a leak for weeks
  • Homes near Uptown Whittier and Whittier College with finished basements or lower levels below the heater

Even where code doesn't strictly require it, a pan is inexpensive protection for any install near finished space. The question isn't whether your tank will eventually leak — every tank does, given enough years — it's whether you'll find out from a drip at the drain termination or from a collapsed ceiling.

What to Expect on Install Day in Whittier

  1. Inspection first. We check the tank's age and base condition, because a pan under a failing tank is the wrong order of operations — if replacement is due, we quote both together.
  2. Pan selection. Corrosion-resistant, full-footprint, 1-1/2-inch minimum depth, chosen for the realities of your small utility closets — tight closets get low-profile designs that still meet code.
  3. Drain design. The 3/4-inch minimum drain route is mapped with continuous fall to a visible exterior termination; on Whittier's gentle hills, this step gets the most planning time.
  4. Installation. Tank lifted onto the pan, drain run and supported, connections remade with fresh supply lines where the old ones show age.
  5. Water test. We pour water into the pan and watch it travel the full drain path to the termination — no test, no sign-off.
  6. Alarm recommendation. We suggest placement for a water alarm that turns a future leak into an audible alert instead of a hidden one.

You'll know where every part of the system is and what it does before we leave. A pan installation should leave you more informed, not just better protected.

Pans, Alarms, and Shutoffs: The Full Protection Stack

A pan handles the water; an alarm handles the awareness. A ten-dollar water alarm on the pan or the floor beside the tank turns a silent 2 a.m. failure into a wake-up call, and for Whittier homes near Uptown Whittier and Whittier College where the heater sits out of sight, that audible alert is worth more than the pan itself. We recommend placement on every install and can supply the alarm.

For the next level, an automatic shutoff valve closes the cold-water supply when its sensor gets wet — stopping the leak at the source instead of merely containing it. On attic and second-story installs, where even a contained leak means water sitting in a ceiling, the shutoff earns its keep. It's a modest add-on during a pan install and a much bigger job as a standalone visit.

The full stack — sound tank, code-compliant pan with a tested drain, alarm, and ideally an auto-shutoff — means the next failure is an appointment, not an emergency. Pair it with the maintenance that delays that failure: annual flushing against our mineral-heavy water and periodic anode checks. Call (833) 713-2101 and we'll build the right stack for your Whittier 90603 home.

Need Help Right Now?

Call Water Heater Leak Repair Masters at

(833) 713-2101

Available 24/7 for emergencies

Frequently Asked Questions

Yes, where a leak would cause damage. California Plumbing Code 508.4 requires a watertight pan of corrosion-resistant material beneath water heaters installed in attics, over ceiling assemblies, or in similar damage-prone locations — minimum 1-1/2 inches deep with a drain no smaller than 3/4 inch to an approved location. In Whittier 90603, that covers most attic installs, second-story closets, and heaters above finished space. Even where not strictly required, a pan is cheap protection we recommend widely.

In most cases, yes. A retrofit pan installation lifts the existing tank onto a new corrosion-resistant pan and runs the drain to an approved termination — typically a two-to-three-hour job with hot water back the same day. The exception is a tank already near failure: installing a pan under a tank that needs replacement within the year means paying for the labor twice, so we'll tell you honestly if bundling makes more sense.

To an approved, visible location — that's the code language and the practical requirement. Common terminations in Whittier include the driveway edge, a side yard, or above a landing where discharge is immediately noticeable. The key rules: continuous fall along the whole run, no smaller than 3/4 inch, and termination where someone will actually see water coming out. A drain that empties into a hidden crawl space defeats its own purpose.

If the garage shares a finished wall with living space — which describes most of Whittier's 1920s–1960s homes near Uptown Whittier — then yes, in every practical sense. A tank failure on a slab doesn't drain away; it spreads across the floor and wicks into drywall, baseboards, and stored belongings. The pan contains the initial release and the drain routes it outside, which is the difference between mopping a pan and replacing a wall.

Material and fit. Thin plastic pans crack under a full tank's heat and weight; untreated steel pans rust through. We install corrosion-resistant pans — heavy-gauge aluminum or high-density composite — sized to the tank's full footprint at the code-minimum 1-1/2-inch depth. In Whittier's small utility closets, where heat and tight clearances punish cheap materials, the pan has to survive decades of service, not just pass a glance on install day.

A water alarm, absolutely — it's inexpensive and turns a silent leak into an audible alert, which matters most for heaters in small utility closets that nobody checks regularly. An automatic shutoff valve goes further by closing the cold supply when its sensor detects water; we especially recommend it for attic and second-story installs in 90603, where even contained water sits in a ceiling. Both are easy add-ons during the pan installation visit.
